Approving flawed manufacturing drawings in hospitality FF&E procurement carries massive financial and timeline risks. A single millimeter error on a custom nightstand gets multiplied across hundreds of guest rooms. This turns a minor oversight into a logistical nightmare. The core business problem lies in the persistent gap between conceptual design intent and manufacturing reality. Architectural renderings present a flawless vision. Fabrication, however, involves strict material constraints, structural limitations, and unpredictable site conditions.
Rigorous shop drawing review acts as the risk-mitigation bridge between the designer's vision and the factory floor. It prevents catastrophic production errors, ensures strict compliance with safety regulations, and secures project timelines before raw materials are cut. By treating these documents as binding fabrication contracts, project teams eliminate assumptions. You enforce quality standards and guarantee every piece of furniture fits perfectly upon arrival.

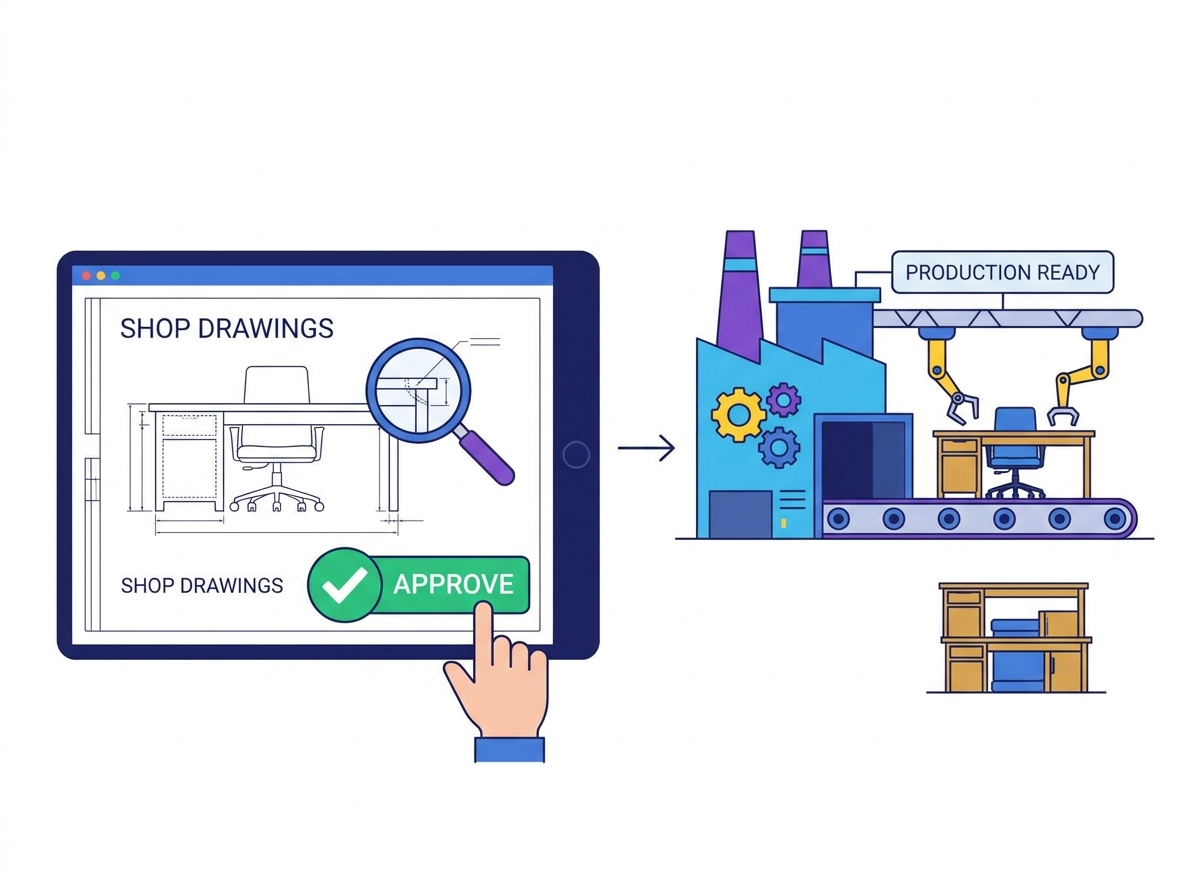

Hotel furniture shop drawings are not design concepts; they are binding fabrication contracts that dictate exact structural, material, and installation realities.
Approving drawings requires evaluating four critical dimensions: dimensional tolerances, structural joinery, MEP (Mechanical, Electrical, Plumbing) integration, and material specifications.
Strategic timing is critical: securing preliminary shop drawing approval months ahead of final site measurements creates capacity to absorb inevitable architectural changes.
Physical mockups and material samples must be reviewed concurrently with shop drawings to validate both aesthetic intent and structural integrity.
Table of Contents
Interior design drawings show what the furniture looks like. They focus on aesthetics, spatial relationships, and overarching style. In contrast, hotel furniture shop drawings dictate exactly how the manufacturer will physically build those pieces. They translate a conceptual vision into an engineering reality. Designers specify a walnut credenza. The shop drawing details the internal blocking, the 18mm plywood substrate, the veneer matching technique, and the specific concealed fasteners required to hold it together.
Understanding the document lifecycle prevents project mismanagement. Shop drawings are pre-fabrication blueprints detailing intended construction methods. They are generated before physical work begins. As-builts are post-installation documents. They record what was actually built and installed on-site, capturing field modifications. The translation process moves from conceptual CAD or BIM files into actionable production blueprints. Manufacturers deliver these in 2D DWG or PDF formats. Complex custom pieces often require 3D models generated in SolidWorks to verify geometries and structural loads before cutting expensive materials.
These detailed blueprints establish the definitive baseline for quality control and manufacturer accountability. If a delivered headboard warps after three months, the project team consults the approved drawings. They verify if the factory followed the specified moisture content (typically 6-8% kiln-dried) and substrate guidelines. They serve as the primary communication tool across the project ecosystem. The architect, interior designer, procurement agent, and fabrication facility rely on this single source of truth to align their expectations.
Shop drawings are rarely reviewed in isolation. They form the core of a comprehensive submittal package. Reviewing a drawing without its accompanying hardware cut sheets, finish schedules, and material certifications leaves gaps in quality assurance. The submittal package ensures the heavy-duty drawer glides drawn on the page match the commercial-grade specifications required for high-traffic hospitality environments. You cannot approve a drawing if the hardware cut sheet indicates a residential-grade component.
Verifying overall dimensions against spatial constraints is the first step. You must check the width, depth, and height of every piece against the architectural floor plans. Standard guest rooms have tight clearances. ADA-compliant rooms require even stricter scrutiny. A desk might fit perfectly in a standard room but fail to provide the mandatory 27-inch knee clearance required by accessibility regulations. Every dimension must be verified against the specific room matrix.
Hotel floors are rarely perfectly level. Walls are almost never entirely plumb. Shop drawings must include built-in tolerances to account for these site realities. Look for specific callouts detailing scribes, filler panels, and adjustable leveling glides. A built-in wardrobe without a specified 50mm scribe allowance will leave unsightly gaps against an uneven wall. This requires messy on-site caulking or expensive field modifications that delay the room turnover.

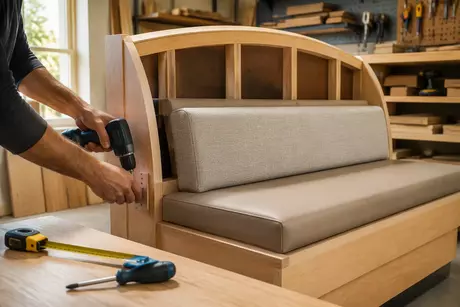

The construction methods detailed in the drawings determine the lifespan of the furniture. Hospitality environments subject furniture to intense daily abuse. You must look for robust joinery techniques. Mortise and tenon, heavy-duty dowel joints, and dovetail drawers are standard requirements. Unacceptable shortcuts, such as relying solely on butt joints and brad nails, should trigger immediate rejection during the review phase. The drawings must show internal corner blocking for all casegoods.
Hardware specifications must be explicitly detailed directly on the drawings. Vague labels like "drawer slide" are insufficient. The drawings must specify commercial-grade hardware. This includes 100-pound capacity full-extension drawer glides, concealed European hinges with 110-degree opening angles, and mandatory anti-tip mechanisms for freestanding casegoods. The exact placement and load rating of these components must be verified to ensure guest safety and product longevity.
Every material callout on the shop drawing must be cross-referenced with the approved FF&E specification matrix. This ensures the factory intends to use the correct veneer species. It verifies the appropriate high-pressure laminate (HPL) grades and upholstery fabrics that meet the required 50,000 double-rub counts for commercial use. A discrepancy here often indicates a manufacturer attempting to substitute inferior materials to increase their margin.
Pay close attention to the finer details of material application. The drawings must explicitly note the wood grain direction on all visible surfaces. Edge banding thickness should be specified. We typically require 2mm or 3mm PVC or solid wood edges for durability, rather than thin melamine tape. Finish application methods, including the type of polyurethane topcoat and its sheen level, must be clearly documented. This guarantees consistency across hundreds of units.
Modern hospitality furniture heavily integrates technology. Casegoods frequently house power outlets, reading lights, and charging ports. The drawings must detail the exact routing for LED strip lighting. This includes the location of the driver and the concealment of the wiring. Headboards and nightstands require precise cutouts for USB-C and standard power receptacles. These must coordinate precisely with the electrical rough-in locations on the architectural plans. All electrical components must specify UL listing requirements.
Wire management is a major component. Drawings should show internal chases or grommets that keep cords organized and hidden from the guest's view. Enclosed electronics generate heat. Minibar cabinets and media consoles must include specified ventilation cutouts or grilles to ensure proper heat dissipation. Accessibility for future maintenance must also be considered. Hotel engineering staff need to replace a faulty LED driver without dismantling the entire furniture piece.
Key Evaluation Metrics for Shop Drawing Review | ||
Evaluation Category | Critical Elements to Verify | Common Red Flags |
|---|---|---|
Dimensional Tolerances | Clearances, adjustable glides, 50mm scribe allowances | Exact wall-to-wall dimensions without filler panels |
Structural Joinery | Mortise & tenon, dovetail, internal corner blocking | Stapled butt joints, lack of internal supports |
MEP Integration | Wire chases, ventilation grilles, driver access panels | Sealed minibar cabinets, missing power cutouts |
Material Specs | Grain direction, 3mm edge banding, 18mm substrate | Vague "wood finish" labels, missing laminate grades |
Hardware | 100-lb glides, 110-degree hinges, anti-tip brackets | Generic "drawer slide" labels, missing load ratings |
The standard operating procedure for marking up drawings requires clear, unambiguous annotations. Reviewers use standardized redlining techniques to cross out incorrect dimensions, add missing specifications, and clarify design intent. Vague comments lead to manufacturing errors. Instead of noting "make stronger," a proper redline specifies "add 50mm solid wood corner blocks at all base junctions."
The review process follows a strict hierarchy to ensure all disciplines verify the details.
Manufacturer Draft: The factory engineering team submits the initial CAD drawings based on the design brief and specification matrix.
Procurement Review: The purchasing agent conducts a preliminary review to ensure budget alignment and basic specification compliance.
Designer/Architect Review: The design team performs a deep technical review for aesthetic intent, spatial coordination, and finish matching.
Final Client Sign-off: The ownership group or their designated representative provides the ultimate authorization to proceed with production.
Strict version control is absolutely necessary. Projects often go through multiple rounds of revisions. If the factory accidentally manufactures from "Revision B" instead of the approved "Revision D," the resulting furniture will be incorrect. Every drawing must feature a clear title block displaying the project name, item number, revision date, and a sequential revision number. Outdated drawings must be explicitly voided and removed from the active project directory.
Shop drawings cannot be approved in a vacuum. A line on a page cannot communicate the tactile feel of a fabric or the exact sheen of a wood finish. Drawings must be validated against physical finish samples. This includes wood strike-offs, metal swatches, and laminate chips. The approved physical sample becomes the benchmark for the final production run, working in tandem with the approved drawing.
The model room, or mockup phase, is the ultimate test of the shop drawing's accuracy. Building a prototype allows the project team to test the drawing's assumptions in a physical space. Does the wardrobe door clear the bathroom entrance? Is the desk height comfortable with the selected chair? Discovering a flaw during the model room review allows for drawing revisions before authorizing mass production. This saves immense resources and prevents site-wide failures.
Industry-standard terminology dictates the legal implications of the review process. Reviewers use specific stamps to indicate the status of the submission.
Approved: The manufacturer is authorized to build exactly what is shown without any modifications.
Approved as Noted: Production can proceed, provided the manufacturer incorporates the specific, minor redlined changes without needing to resubmit a new draft.
Revise and Resubmit: Production is halted. The drawing contains significant errors requiring a complete overhaul and a fresh review cycle.
Rejected: The submission fundamentally fails to meet the project requirements and must be completely re-engineered.
These stamps carry significant legal weight. Once a design or procurement team formally stamps a drawing "Approved," a portion of the liability shifts. If the manufacturer builds the piece exactly to the approved drawing, but the piece fails to fit the room due to an architectural oversight, the manufacturer is generally not at fault. The approval stamp signifies that the project team has verified the dimensions and specifications against the site conditions.
Experienced project managers operate by the "6-month rule." Securing preliminary approval for furniture drawings well before final site measurements are available provides a necessary buffer. Architectural shifts are inevitable during construction. Walls move, plumbing chases expand, and floor levels fluctuate. Early drawing approval establishes the baseline design. This allows the factory to engineer the core structure while leaving specific filler panels or scribes adaptable to final field dimensions.
Chronological dependency dictates the entire procurement timeline. Shop drawing approval is the trigger for raw material procurement. Custom veneers, specialized high-pressure laminates, and imported hardware often carry lead times of several weeks or months. You cannot order these materials until the drawings dictate the exact quantities and specifications. Delaying the drawing review directly delays material acquisition. This subsequently pushes back fabrication and threatens the final installation date.
Discrepancies discovered late in the construction phase require strategic management. When final "As-Built" site dimensions differ from the architectural plans, the furniture drawings must adapt quickly. If a room is suddenly two inches narrower, the team must decide whether to shrink the desk, reduce the nightstand width, or alter the bed frame. Having a responsive drafting team allows for rapid revisions without halting the entire factory line.
Fast-tracking critical path items is a necessary strategy. Built-in wardrobes, bathroom vanities, and kitchenettes are permanently affixed to the architecture. Their drawings require absolute priority because construction teams need these dimensions to finalize plumbing and electrical rough-ins. Freestanding loose furniture, like lounge chairs or dining tables, carries less spatial risk. These can be processed slightly later in the approval queue if resources are constrained.
Compliance failures in shop drawings present severe legal and operational risks. Frequent oversights include incorrect desk clearance heights. Wardrobes often have hanging rods placed out of accessible reach, failing the 48-inch maximum high forward reach rule. Protruding wall-mounted objects violate cane-detection rules for visually impaired guests. Failing to specify anti-tip hardware on heavy dressers poses a direct safety hazard.
The most effective mitigation strategy is mandating a dedicated compliance checklist during the redlining phase. Reviewers should not rely on memory. They must actively cross-reference every relevant drawing against local accessibility codes and hotel brand safety standards. If a specific item is designated for an accessible room, it must undergo a separate, rigorous compliance audit before receiving the approval stamp.
A beautifully engineered piece of furniture is useless if it cannot reach the guest room. Reviewers often ignore the logistical reality of moving large items through a complex hotel site. Will a fully assembled, three-meter-long headboard fit through the service elevators? Can it navigate tight corridor corners or standard guest room doorways? Failure to account for installation constraints results in damaged furniture and costly on-site modifications.
To mitigate this risk, require shop drawings to explicitly specify the shipping and assembly method. The drawings must state whether items ship fully assembled or Knocked Down (KD). For KD items, the drawings must detail the exact on-site assembly requirements. This includes the type of concealed fasteners used to join the sections together once inside the room. This ensures the installation team has the right tools and instructions.
The quality of the submitted drawings serves as a highly accurate litmus test for the manufacturer's overall technical capability. A factory that produces sloppy, incomplete drawings will almost certainly produce sloppy, substandard furniture. The drafting phase reveals how deeply the manufacturer understands commercial construction standards and material behaviors.
Watch for specific red flags during the initial submission. Missing cross-sections indicate a lack of internal structural planning. Vague material callouts suggest the factory intends to use whatever cheap materials are currently available. Failure to account for room baseboards, electrical outlet placements, or wall switches demonstrates a dangerous lack of coordination with the architectural environment. Poor CAD formatting, overlapping lines, and illegible text reflect a disorganized operation. You should not trust such an operation with a multi-million dollar FF&E budget.
Approving hotel furniture shop drawings is a rigorous technical evaluation, not a mere administrative formality. It is the single most effective mechanism a project team possesses to protect the budget, enforce quality standards, and guarantee the installation timeline. By treating these documents as binding contracts, you eliminate the guesswork that plagues complex hospitality projects.
When selecting manufacturing partners, prioritize firms that demonstrate proactive problem-solving. Partner only with FF&E manufacturers or drafting firms that deliver high-fidelity detailing in their initial submissions. A vendor who asks precise questions about site tolerances and MEP integration during the drafting phase is a vendor who will deliver a superior final product.
To secure your next hospitality project, take the following immediate actions:
Audit your current FF&E specification packages to ensure all hardware, finishes, and MEP requirements are explicitly defined before requesting drawings.
Request sample shop drawings from prospective vendors during the bidding phase to evaluate their engineering competence and attention to detail.
Establish a strict version control protocol with your procurement team to ensure only the latest, fully approved revisions reach the factory floor.
Schedule a physical model room review specifically to test the spatial assumptions and material choices detailed in the approved drawings.

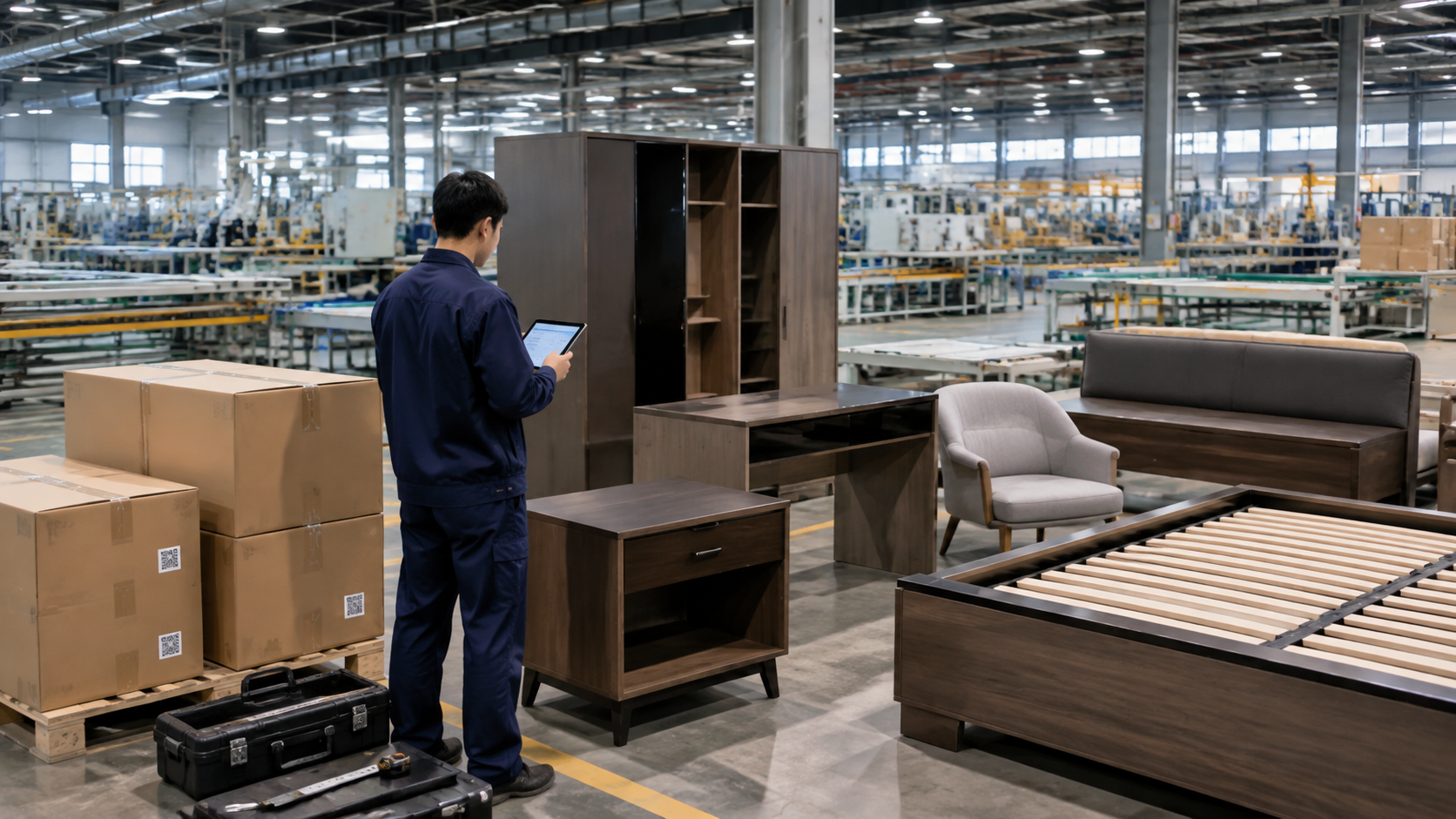

Backed by more than 30 years of furniture manufacturing experience and full-cycle services from CAD design to on-site installation, Hongye Furniture Group delivers one-stop customized furniture solutions for hospitality projects. Its integrated design and production capabilities help hotel owners, designers, and contractors turn FF&E concepts into buildable furniture that aligns with approved specifications, site conditions, and brand standards.
A: Interior design drawings illustrate the conceptual aesthetics, style, and spatial layout of the furniture. Shop drawings are highly technical engineering blueprints created by the manufacturer. They detail exactly how the piece will be physically constructed, specifying internal joinery, material thicknesses, hardware types, and exact dimensions required for fabrication.
A: The initial drafting usually takes two to four weeks, depending on project complexity. The review cycle involving procurement, design, and client teams can take an additional two to three weeks per revision. Complex projects often require multiple revision rounds, making it necessary to initiate the process months before production begins.
A: "Approved as Noted" means the manufacturer is authorized to proceed with production, provided they implement the specific, minor corrections marked on the drawing by the review team. It saves time by eliminating the need for the manufacturer to generate and resubmit a completely new draft for another full review cycle.
A: Shop drawings exist on a two-dimensional plane and cannot fully replicate real-world conditions. Physical model rooms allow the team to test the furniture's scale, comfort, and functionality within the actual spatial constraints. It validates that the engineering decisions made on paper translate successfully into the physical guest experience.
A: Responsibility is shared. The manufacturer is responsible for accurate structural engineering and translating the design intent into buildable plans. However, once the design and architectural teams stamp the drawing "Approved," they assume liability for verifying that the dimensions, aesthetics, and material specifications align with the site conditions and overall project requirements.
A: Professional shop drawings incorporate built-in tolerances to handle site variations. They specify scribe pieces, filler strips, and adjustable leveling glides. Scribe pieces are oversized panels trimmed on-site to fit uneven walls. This allows the factory to build the core furniture structure early while providing the installation team flexibility to ensure a perfect fit.
